24V 7 Pin Plug N style Trailer Connector With Spring Cable

24V 7 Pin Plug N style Trailer Connector With Spring Cable Featured Image
  • 24V 7 Pin Plug N style Trailer Connector With Spring Cable

Short Description:

•24 VOLT
•PLUG 1 – 7 PIN/24N
•PLUG 2 – 7 PIN/24N
•BLACK
•ALUMINIUM PLUGS
•20 WINDINGS
•3METRE CABLE (WORKING LENGTH)
•ISO NORM 1- 1185

Cross-shaped slotted copper needle, matched with the female pin, the size of the cross-shaped slot (fit size) is easier to control, (the shape of the slotted slot is unstable). Appearance of high-quality aluminum, the materials used are exquisite. Design, convenient and more convenient to use.


  • Min.Order Quantity: 1000Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Week
  • Port: Shanghai, China
  • Payment Terms: T/T
    • Download as PDF

    Product Detail

    Product Tags

    •24 VOLT
    •PLUG 1 – 7 PIN/24N
    •PLUG 2 – 7 PIN/24N
    •BLACK
    •ALUMINIUM PLUGS
    •20 WINDINGS
    •3METRE CABLE (WORKING LENGTH)
    •ISO NORM 1- 1185

    Cross-shaped slotted copper needle, matched with the female pin, the size of the cross-shaped slot (fit size) is easier to control, (the shape of the slotted slot is unstable). Appearance of high-quality aluminum, the materials used are exquisite. Design, convenient and more convenient to use.

    Product information

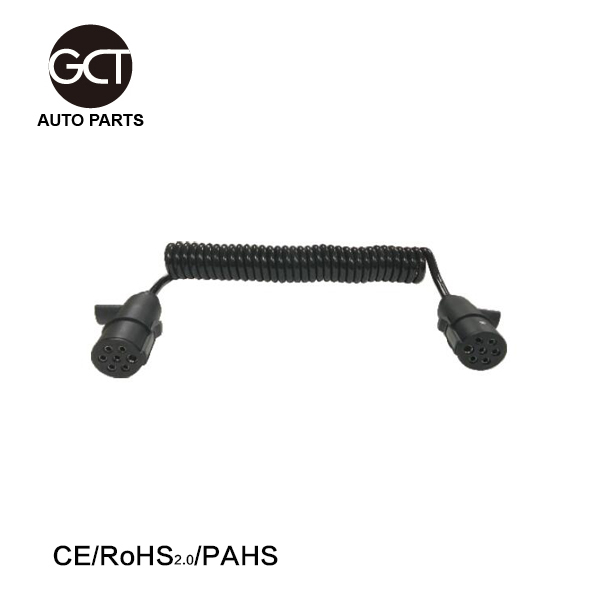

    Model:  CT1107(CT6002+Spring cable+CT6002) N type
    Type: 7*0.5mm2 spring wire (TPU) (for European cars)
    Offline line length: 3.9m
    Working line length: 3m
    Features:  Waterproof
    Contact material: Copper
    Insulator material: Engineering plastic
    Material: Plastic
    Number of cores: 7
    Number of stitches: 7
    Voltage output: 24V
    Main function: Connecting truck and power supply, suitable for trailer signal display
    Applications: Commercial vehicles / trailers / RVs / trucks / trucks / semi-trailers /Car/ship/caravan/yacht, etc.



    7 Pin Lighting Connections – 12 N Black Cable Function



    PIN 1 – Yellow Wire (Left/Hand Direction Indicator)

    PIN 2 – Blue Wire ( Rear Fog Lamps)

    PIN 3 – White Wire ( Earth Return)

    PIN 4 – Green Wire (Right/H Direction Indicator)

    PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)

    PIN 6 – Red Wire (Stop Lamp)

    PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)



    Caravan 7 pin supplementary circuits 12S grey cable function

    Pin 1- Yellow Reversing Lamps

    Pin 2- Blue Battery Charging (original UK system)

    Pin 3 -White Earth Return (for pins 2&4)

    Pin 4- Green Power Supply

    Pin 5 -Brown Spare

    Pin 6- Red Fridge

    Pin 7- Black Earth Return (for pin 6)
