Description
The ABS/EBS/ADR (ADR=Dangerous Goods Certified) connectors are used on nearly every commercial vehicle type with ABS/EBS System. They show safety features like automatic ejection of the plug in case of faulty wiring.
To avoid confusion between 24V and 12V connectors, the systems feature different codings. The connectors are available for normal and ADR applications. The letter inserts are red for the 24V ADR systems and white for the normal systems.
| Product information | |

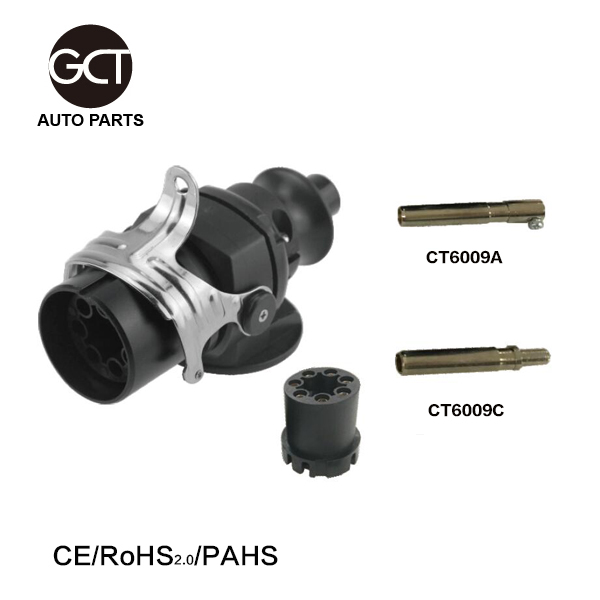

| Model: | CT6009 |
| Type: | Plug |
| Shape: | Round |
| Production process: | Injection molding |
| Features: | Waterproof |
| Contact material: | Copper |
| Insulator material: | Engineering plastic |
| Material: | Plastic |
| Number of cores: | 7 |
| Number of stitches: | 7 |
| Voltage output: | 24V |
| Main function: | Connecting truck and power supply, suitable for trailer signal display |
| Applications: | Commercial vehicles / trailers / RVs / trucks / trucks / semi-trailers /Car/ship/caravan/yacht, etc. |
7 Pin Lighting Connections – 12 N Black Cable Function
PIN 1 – Yellow Wire (Left/Hand Direction Indicator)
PIN 2 – Blue Wire ( Rear Fog Lamps)
PIN 3 – White Wire ( Earth Return)
PIN 4 – Green Wire (Right/H Direction Indicator)
PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)
PIN 6 – Red Wire (Stop Lamp)
PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)
Caravan 7 pin supplementary circuits 12S grey cable function
Pin 1- Yellow Reversing Lamps
Pin 2- Blue Battery Charging (original UK system)
Pin 3 -White Earth Return (for pins 2&4)
Pin 4- Green Power Supply
Pin 5 -Brown Spare
Pin 6- Red Fridge
Pin 7- Black Earth Return (for pin 6)
